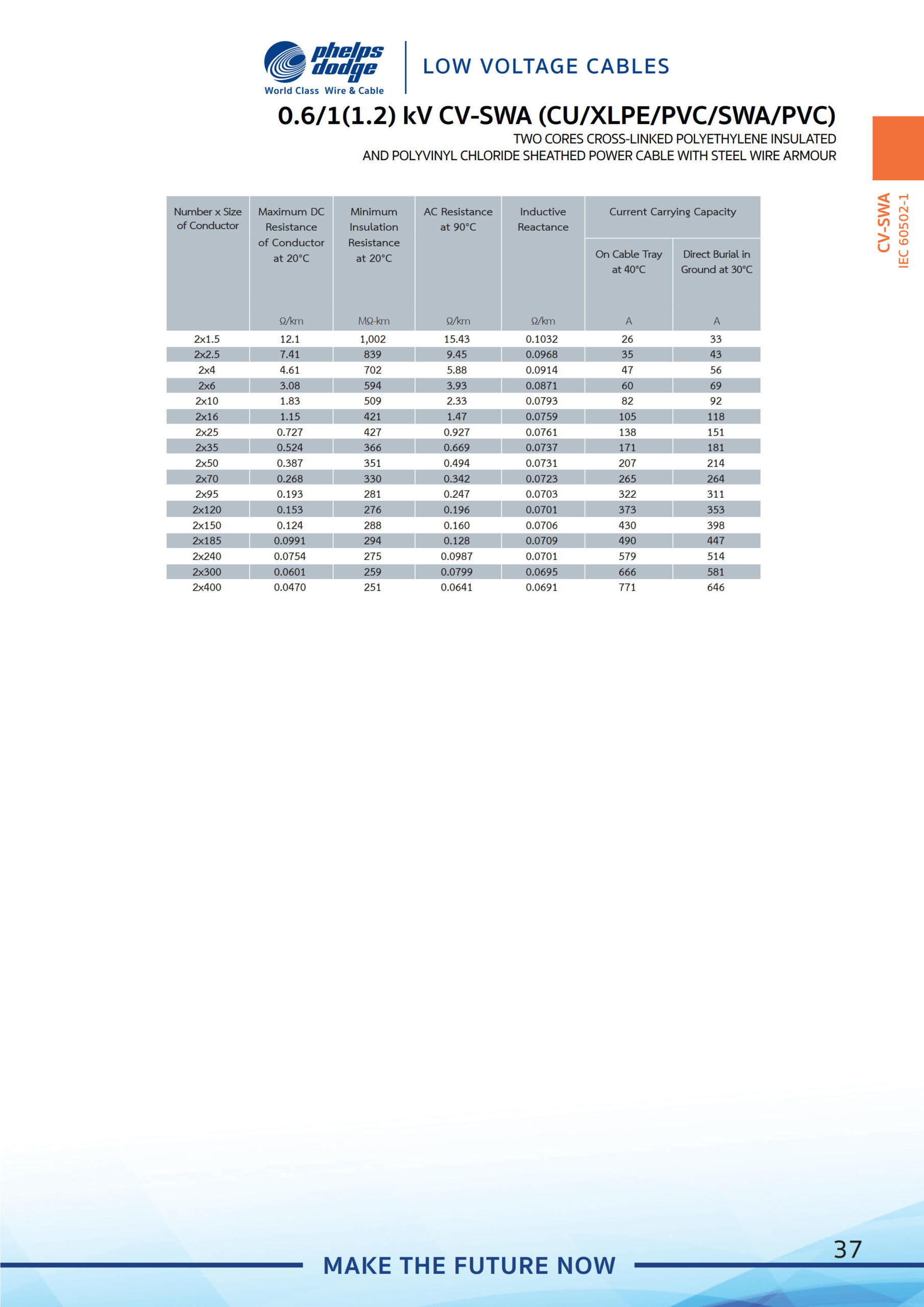

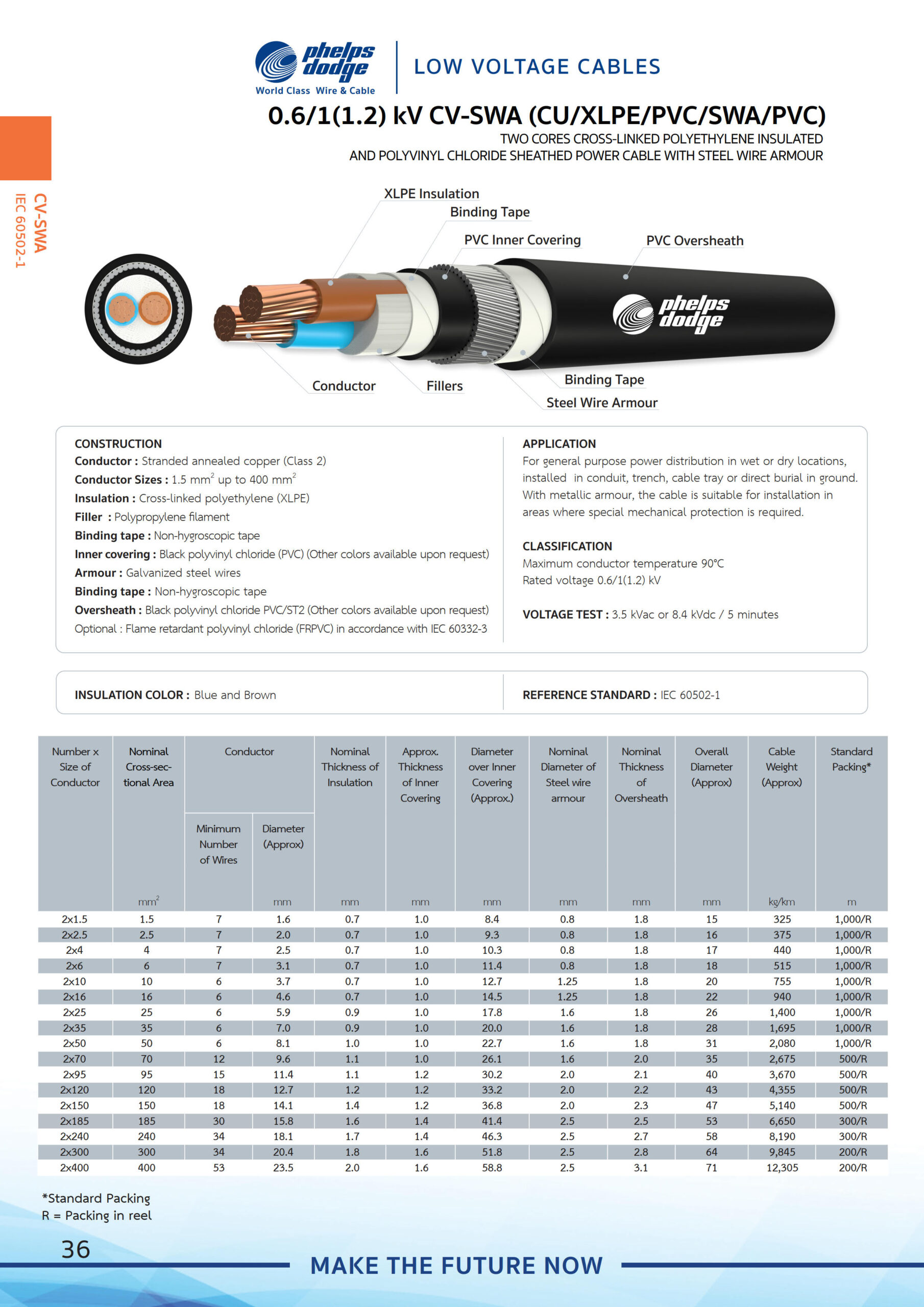

Cable name : PHELPS DODGE CABLE TYPE CV-SWA
| Cable Structure : | 0.6/1 kV XLPE INSULATED AND PVC SHEATHED POWER CABLES |
| WITH STEEL WIRE ARMOUR (TYPE CV-SWA), TWO CORES | |
| Conductor : | Concentric stranded annealed copper (1.5 up to 6 mm2) |
| or Compact round stranded annealed copper | |
| Conductor Sizes: | (10 up to 400 mm2) |
| Insulation : | Cross-linked polyethylene (XLPE) Color : Brown and Light Blue |
| Application : | For general purpose power distribution in wet or dry |
| locations, installed in air, conduit, duct, trench, cable | |
| tray or direct burial in ground. With metallic armour, the | |
| cable is suitable for installation in areas where special | |
| mechanical protection is required. |
Data Sheet
Conductor : Concentric stranded annealed copper (1.5 up to 6 mm2) or Compact round stranded annealed copper (10 up to 400 mm2)
Insulation : Cross-linked polyethylene (XLPE)
Color : Brown and Light Blue
Filler : Polypropylene filament or suitable material
Inner sheath : Polyvinyl chloride (PVC)
color : Black
Armour : Galvanized steel wires
Binding tape : Non-hygroscopic tape
Outer Sheath : Polyvinyl chloride (PVC/ST2)
Color : Black
Option : Polyethylene (PE/ST7), Flame retardant polyvinyl chloride (FR-PVC) in accordance with IEC 60332-3
